Industrial Dashcam

The dashcam version of the VIU2 supports end users in analyzing faults and tracking problems in the production environment. With its continuous recording, it makes it possible to view relevant events not only from the time of an error message, but also retrospectively before the error occurred. As a result, process deviations and faults in the process can be made visible and evaluated in a targeted manner.

This function helps to identify sources of errors at an early stage and rectify them sustainably. The dashcam function is integrated as standard in all VIU2 variants up to a resolution of 2 MPx. Alternatively, a more cost-effective version is available as a pure dashcam version - without integrated image processing algorithms.

The videos are initially transferred to MP4 format as file output. These can be easily transferred to the desired endpoints (Connections ) in Workflow or saved directly on the camera. An additional ring buffer allows the last 30 videos to be saved.

Workflow Setup

1. In Workflows under Components, go to ➕ .

2. Search for “Dashcam”.

3. A new component with the name “Dashcam” appears.

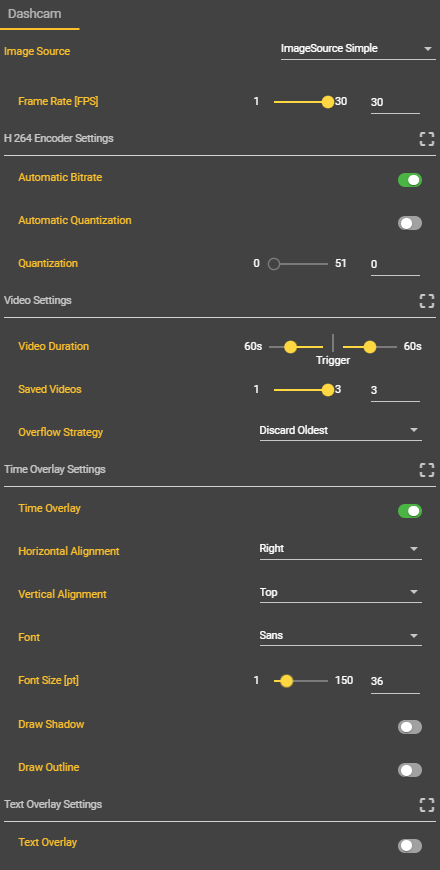

4. Enter the desired settings for the video recording.
