This chapter describes the two types of fastening.
The camera may only be set up by a qualified mechanic.
Ensure that the camera is installed correctly. If the camera is suspended in an area where there is pedestrian traffic, the camera must be secured against falling using a wire attached to a screw on the back plate with an attachment point on the outside.

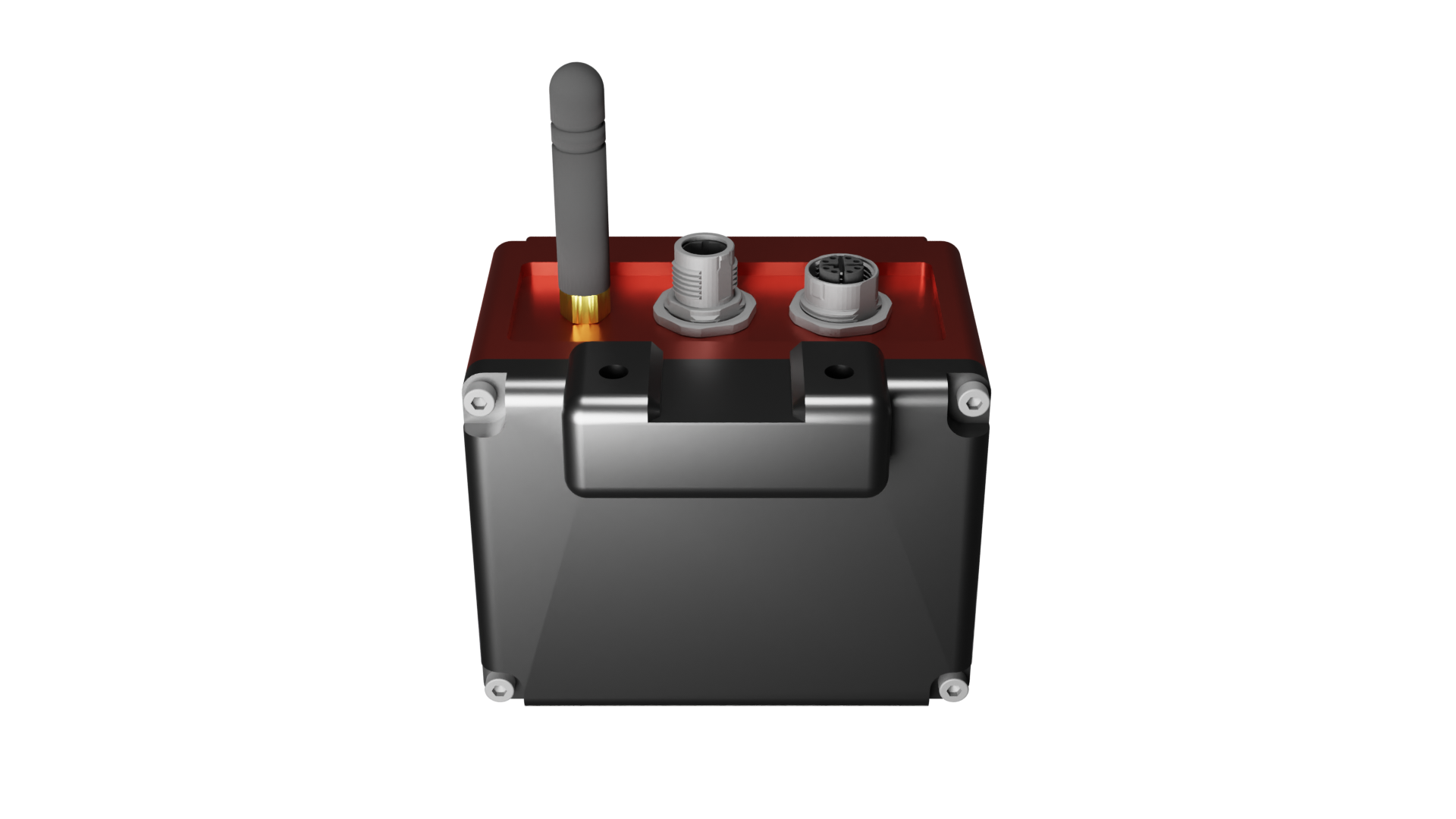

-S: Side-Mounting
The camera requires 2 M6 x 16 screws for side mounting. The distance is 38mm.
|
Type |
Dimension |
Piece |
Scope of delivery |
|---|---|---|---|
|
Cylinder head |
M6x16 |
2 |
NOT AVAILABLE |
The side docker is suitable for the evoVIU quick-change unit as well as for the standard Springer coupling systems with ball head

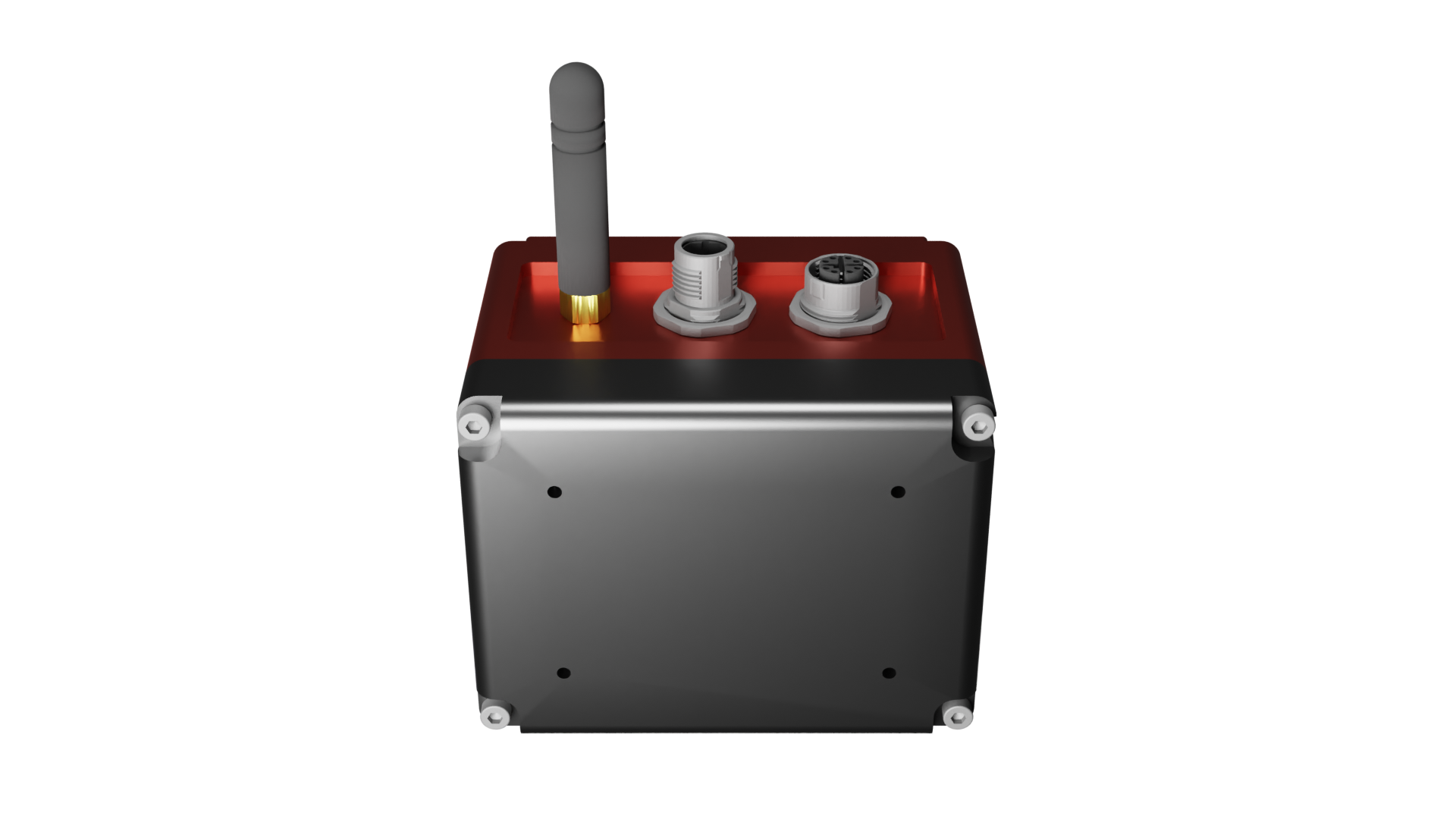

-T: Top Mounting
The camera requires four M3 x 16 screws for top mounting. The distance is 38.5 mm on the short side and 58.5 mm on the long side.
|
Type |
Dimension |
Piece |
Scope of delivery |
|---|---|---|---|
|
Cylinder head |
M3x16 |
4 |
NOT AVAILABLE |
