Load Image From File System

This node allows you to load a single image from your device's file system into the workflow. Please note that only the .bmp, .jpg, and .png formats are supported.

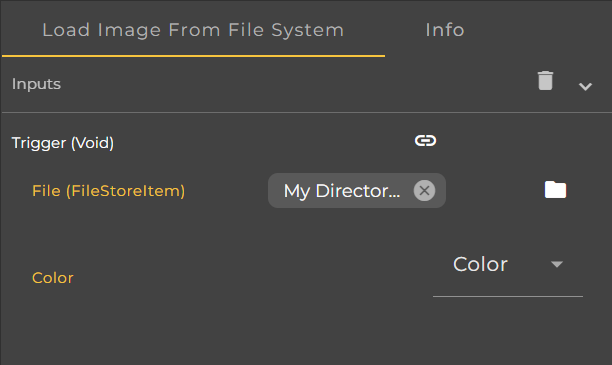

Screenshot 2025-12-02 140418.png

Flow

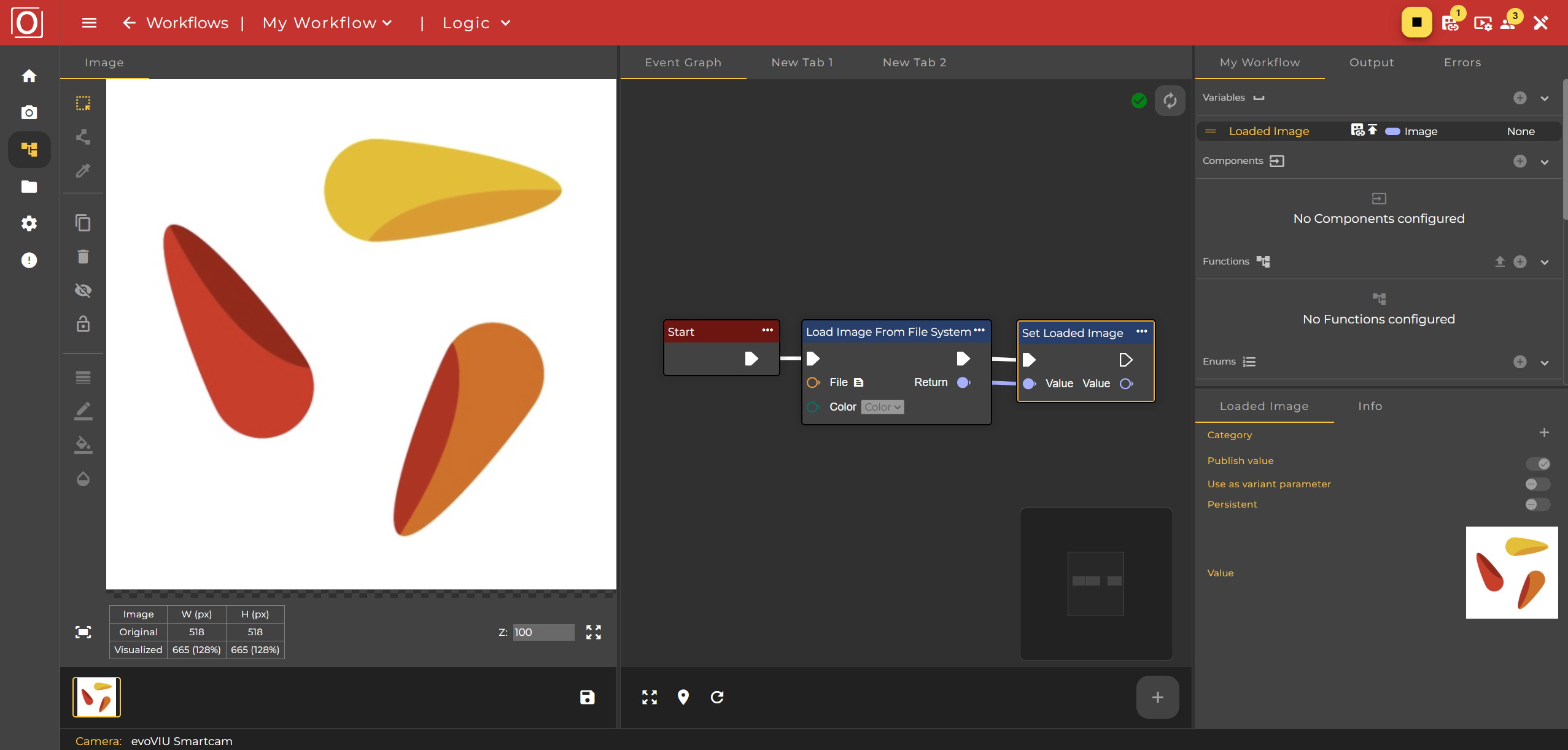

Screenshot 2025-12-02 140351.png

Parameter set

Attribute

Type

Description

Example

File

FileStoreItem

Select an image file from the file system to load.


Color

ImageColor

Specify whether your image should be displayed in color or in grayscale.

Possible values:

  • Color

  • Grayscale

Return


Returns the loaded image.
